Along with all of the other ancient technologies we love, horn loaded drivers get us excited. OK, we admit that makes us geeks but we wear our geekiness as a badge of honour. From vintage to modern, we have built and listened to just about every possible combination of drivers and horn types and understand that each combination has its application. Our value comes from experience and our unique ability to consider all of the engineering and design aspects from the voice coil to the room.

From the ground up.

A horn is an acoustical transformer that takes a small high pressure wavefront and converts it to a large low pressure wave to fill a room with music. The two critical areas of a horn are the transition from the driver to the horn and the transition from the horn to the room. We address the transition from the driver to the horn by simply building the appropriate flare rate into the compression driver. This allows for a seamless transition and allows the waveforms to propagate without hitting any speed bumps so to speak. The transition from the horn mouth to the room is another critical area of horn design. One of the modern day giants we owe a debt of gratitude to is Jean-Michel LeCleac'h. He championed a different way to look at horns and came up with his own flare rate that takes into account the impedance transfer from the mouth of the horn into the room. We used Jean-michel's epansion in our 600hz field coil compression driver. This matched horn driver combo has a 6" length from the phase plug and the first 4" of the expansion are machined into the driver and the remaining 2" consists of a wood horn with full rollback.

600hz LeCleac'h Field coil Compression Driver

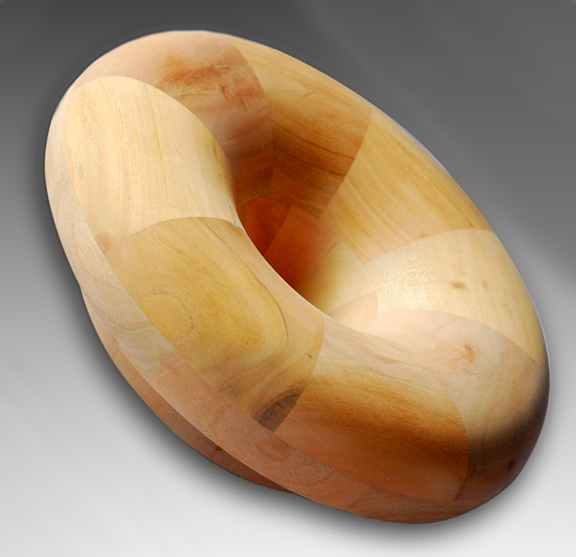

600hz LeCleac'h Wood Horn



Finished Field Coil Compression Driver



Mercury Vapor Field Coil supply powering 600hz Field Coil Horn



Thank you to the giants whose shoulders we stand upon.
